�������V�|���I��W�����ѽ����߷��ӹ⻯�W�F���3D��ӡ���ޏ����ЙC������I��ȡ�����A�����Mչ���о��ɹ����}�顰Self-healing, reprocessing and 3D printing of transparent and hydrolysis resistant silicone elastomers���l���ڡ�Chemical Engineering Journal����Փ�ĵĵ�һ���ߞ�V�|���I��W��ʿ��������ͨӍ���ߞ������ѽ�����
�ڼӹ���ʹ���^���У��ЙC����ϕ����ɱ���������Ѽy���_�ѵȓp�����Ѽyͨ�����y�z�y�����mʹ�Õ����²��ϵ������½�����ʧЧ��������صİ�ȫ�[�������F���ٸ�Ч�̻���ͬ�r�����F�����ޏͲ��֏�ԭ�и������ָ����������ЙC����ϵ�ʹ�É�������ȫ���������Q�ɱ�������Ҫ���x��Ŀǰ���湤�I���ЙC�����߀�o�����F��̻����@�����O�Թ�̻����F���y����۹���������Ƃ��ἃ���y�������Լ����淀���Բ���⣬����ӑB�Iһ��Ҳ���Џ��O���^�y����۹�����朣������������ޏͲ�����ͨ�^��������ӑB�I���F���������Ŀǰ���ޏ��ЙC�菗���w�^�yͬ�r���F��̻������ޏ�������һ����ß�̻���ʽ���Ƃ���ď����w�����������Բ��ҿ�ˮ���Բ��������ڃ�����ˮ�����ܵ����ޏ�����̻��ЙC����ϵ��о���3D��ӡ�����I���@�ú������x��
�����ѽ��ڈF�ͨ�^PDMS�CSH�c����ϩ���͵Ĺ��T���c���������Ȼ������c�������͵ğ����ӑB�x�ӽ������Ŀ���/�������s���p�W�j���Ƃ��һ�N�ɿ���UV�̻����������ޏ��Ե��ЙC���������w�������䑪����3D��ӡ�ϣ���ӡ�����Ѓ����������ޏ����ܵ��ЙC�菗���w���w���Ƃ�Ĺ�-���p���ЙC�菗���w�Ĺ̻��C�������W�jʾ��D���D1����
�D1 Schematic illustration of photo-thermal dual-curing and crosslinked networks of silicone elastomers.

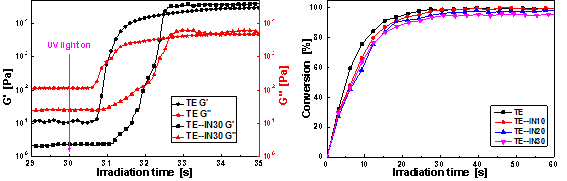

�Ƃ���p���ЙC�����wUV��ݗ��������3 s�����z��20 s�Ȏ���-ϩ���W�j����������γɳ�ʼ���������x�ӽ��W�j��Ӱ푎���-ϩ��̻��W�j���γɣ��M��SLA 3D��ӡ���țQ�l�����D2����
�D2 (a) G'' and G'''' during in situ rheological test; (b) real-time infrared spectra (FTIR) of TE�CIN samples
ͨ�^׃�ؼt�⣨VT-IR�����ӑB��Cе������DMA���������ɳ��О���C�ˏ����w�����ĄӑB�����ԣ��D3����ͨ�^�����w���x���I�ĄӑB���x���ؽM���Ɍ��ЙC�菗���w�Ĕ�������Ч�ޏ����ޏ�Ч�ʿ��_97%���ϣ��Ҷ���ޏͺ����ޏ�Ч���Կ��_92%���ϣ��D4���D5�����������Ƃ���p���ЙC�菗���w���Ѓ����Ļ������������պ����w���쏊�ȿɻ֏�90%��������λ��պ����쏊���Կɻ֏�85% ���ϡ����պ����w�Ծ��Ѓ��������ޏ����ܣ�����ޏͺ��ޏ�Ч���Կ��_90%���ϣ��D6����

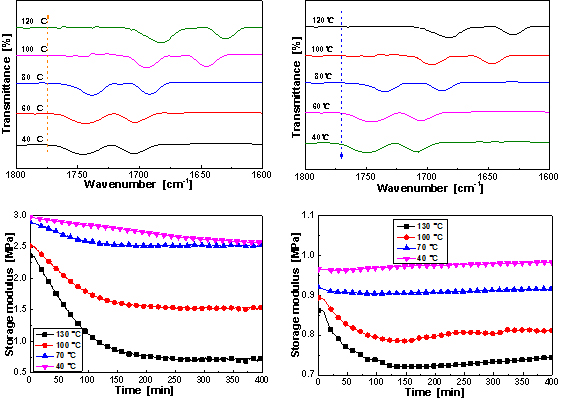

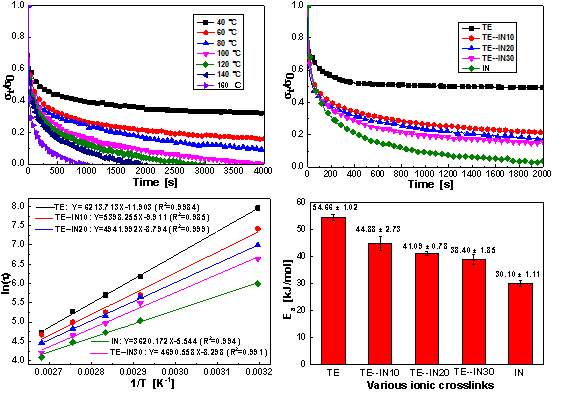

�D3 VT-IR spectra of TE�CIN10, (a) peak shift as heated from 40 to 120 ��C by 10 ��C/min, (b) peak shift during cooled from 120 to 40 ��C by 10 ��C/min. Variation of storage modulus E�� under various temperatures as a function of time, (c) IN samples, (d) TE�CIN10 samples. Normalized stress-relaxation curves, (g) TE�CIN10 samples under different temperatures and (h) elastomers containing various ionic bonds at 60 ��C, (c) Linear fitting of relaxation time (��) versus temperature according to the Arrhenius'' equation, (d) Stress relaxation activation energy (Ea) of samples with various ionic bonds.

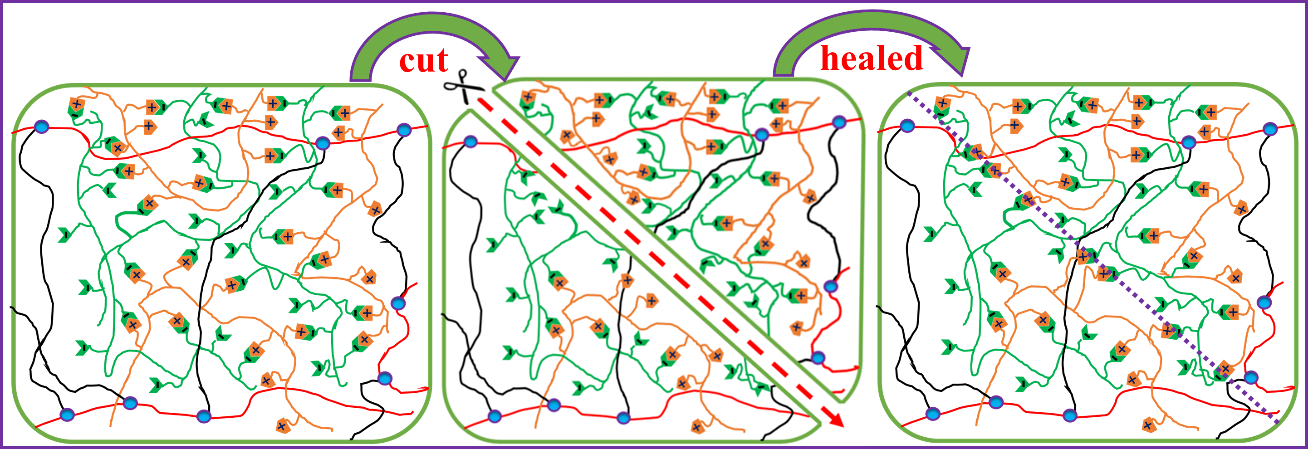

�D4 Illustration of self-healing mechanism.

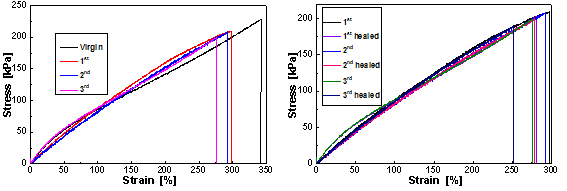

�D5 (a) Repeated macro-repairing of damaged TE�CIN10 samples. Stress-strain curves of virgin and self-healed silicone elastomers, (b) epeatedly healed TE�CIN10 samples, (c) TE�CIN10, TE�CIN20 and TE�CIN30 samples healed at 100 ��C for 12 h.

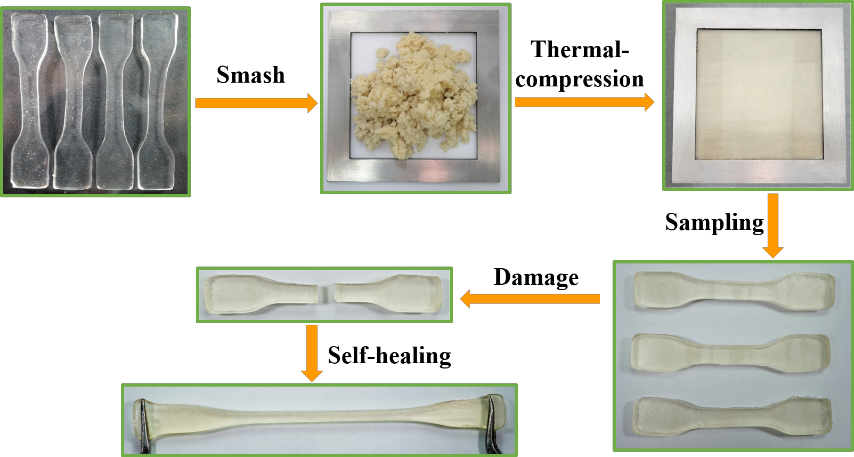

�D6 Photographs for the reprocessing of TE�CIN10 samples. (b-c) Stress-strain curves of virgin and reprocessed silicone elastomers, (b) repeatedly reprocessed TE�CIN10 samples from 80 meshes, (c) self-healing properties of repeated reprocessed TE�CIN10 samples.
�Ƃ���p���ЙC�菗���w���Ѓ������������S���x�ӾW�j���������ӣ���Ҋ�������Կ��_90%��������θߜ؟��ޏͼ����պ�����Ҋ�������Կɸ��_85%���ϣ��D7���������w���Ѓ����Ŀ�ˮ����������ʹ80 ���ˮ̎��48h�������w�����W���ܡ�E''��Tg���o���@��������������80 ���ˮ̎��48h�������wԇ���Ծ��и��_90 %���ϵ��ޏ�Ч�ʣ��D7����

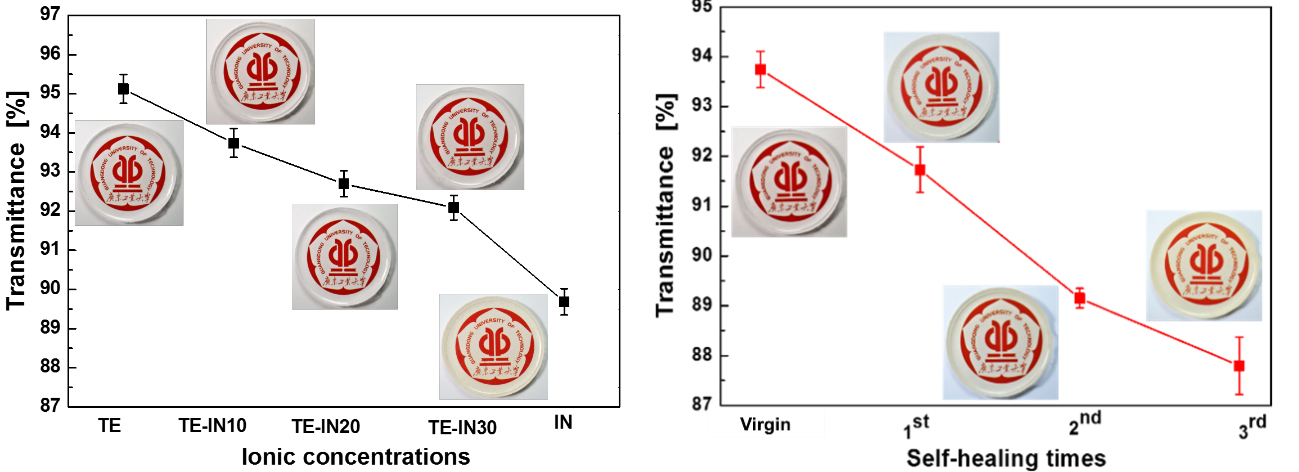

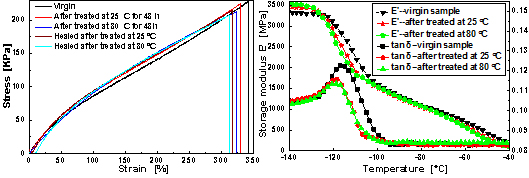

�D7 Transmittance of (a) silicone elastomers containing various ionic bonds, (b) TE�CIN10 samples with different healing times, (c) stress-strain curves and (d) storage modulus E'' and tan �� of TE�CIN10 samples after hydro-thermally treated.
�ЙC�菗���w�䷽ͨ�^Form 2����ʽSLA 3D��ӡ�C���ɴ�ӡ������⻬��݆�������ď����w���w���硰GDUT��У���s�������X݆���͡����\�ǡ��������ЙC��ϼ����Ӱ푹̻����������⣬3D��ӡ�������w���w���Ѓ��������ޏ�����������ޏͺ������ޏ�Ч���Կ��_99%����������3D��ӡ�Ӡ�ѯB��Ӱ��x�ӾW�j�ķֲ���������x���ؽM�^�̡�

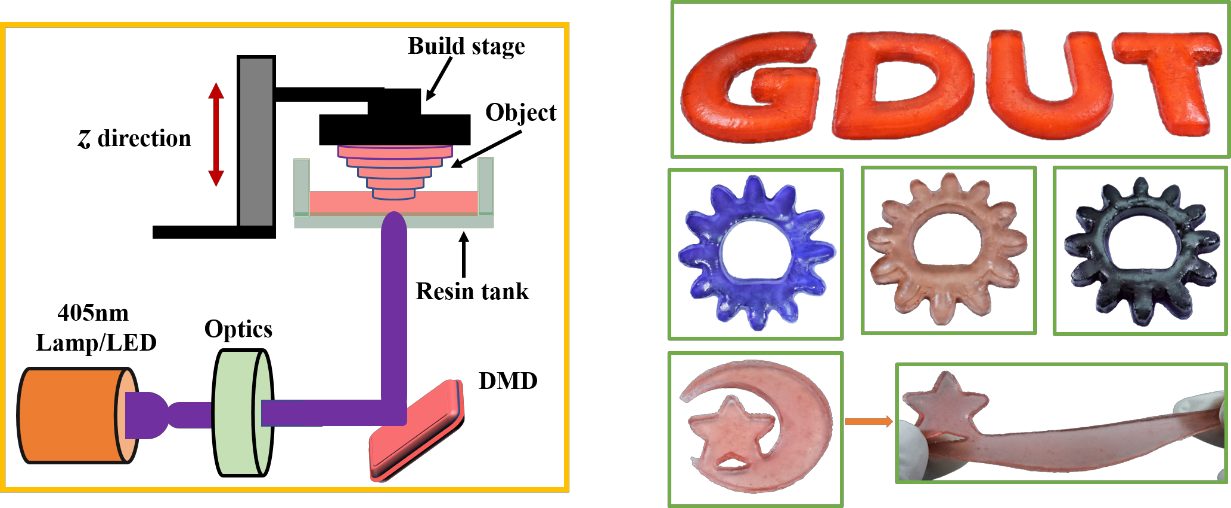

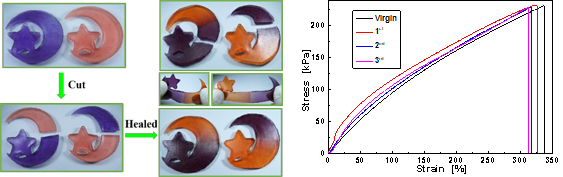

�D8 (a) Schematic of SLA-based 3D printing. (b) 3D printed various geometries from TE�CIN10 formula with different pigments, ��GDUT�� with 1.0 wt% RP�C355, ��Toothed Gears�� in turn with 0.05 wt% BP�C825, 0.05 wt% RP�C355, and 1.0 wt.% BP�C825, ��Ascendant�� with 0.05 wt% RP�C355. (c) Photographs of self-healing 3D printed ��Ascendant��. (d) Stress-strain curves of repeatedly self-healed 3D printed samples after 100 ��C for 12 h.
��ˣ�ͨ�^����-ϩ���ٹ�ۺϼ�������x�ӽ��Ĺ⡪���p����ʽ���ɹ����Ƃ���������ȼ���ˮ�����ܵ����ޏͿɻ���3D��ӡ�ЙC�菗���w�����L�r�g��ӡ���ď��s�Y���ď����w���ܼ�������Ҫ���x�����ܭh�������Lʹ�É��������ͳɱ�������ڿ���ӑB�x�Ӿ����T���Ŀ��ٹ̻����ޏ��ЙC������ṩһ�N���еķ�����
Փ��朽ӣ�https://doi.org/10.1016/j.cej.2020.124142
���������n�}�M�����з����߷��ӹ⻯�W����������-ϩ���c�����W��3D��ӡ�����w��3D��ӡ���ޏͲ��ϺͶ�ܹ����l�������P�ɹ��l���ڡ�Progress in Polymer Science������Journal of Materials Chemistry C����Polymer Chemistry����Langmuir������Journal of Photochemistry & Photobiology A: Chemistry������ChemPhotoChem����Angewandte Chemie International Edition, Chemistry - ChemPhotoChem���͡�Progress in Organic Coatings����ԓ�I��TOP���H�����ڿ��ϡ�
Yan Yang, Zushan Ye, Xiaoxuan Liu*, Jiahui Su*. A Healable Waterborne Polyurethane Synergistically Cross-Linked by Hydrogen Bonds and Covalent Bonds for Composite Conductor. Journal of Materials Chemistry C, 2020, DOI: 10.1039/D0TC00551G
J. Zhou, X. Allonas, X. Liu*. Zirconium Propoxide: A Coupling Agent for the Synthesis of Multifunctional Photoinitiators. ChemPhotoChem, 2018, 2(1): 18-21.
J. Zhou, X. Allonas, X. Liu*. Synthesis and Characterization of Organozirconiums with Type-II Photoinitiator Ligands as Multifunctional Photoinitiators for Free Radical Photopolymerization. Journal of Photochemistry and Photobiology Part A: Chemistry, 2018, 356: 580-586.
J. Zhou, X. Allonas, X. Liu.* Fluorinated Organozirconiums: Enhancement of Overcoming Oxygen Inhibition in the UV-curing Film. Progress in Organic Coatings, 2018, 120: 228-233.
Yang Y, Zhang T, Liu X*. et al. Preparation and photochromic behavior of spiropyran-containing fluorinated polyacrylate hydrophobic coatings. Langmuir, 2018, 4 (51): 15812-15819
Su J, Huang H, Cui Y, Liu X*, et al. A photo-induced nitroxide trapping method to prepare ��, ��-heterotelechelic polymers. Polymer Chemistry, 2016, 7(14): 2511-2520.
Xiang, H.; Yin, J.; Lin, G.; Liu, X*. et al., Photo-crosslinkable, self-healable and reprocessable rubbers. Chemical. Engineering Journal. 2019, 358, 878-890.
H. Xiang, X. Wang, Z. Liu, L. Zhang*, X. Liu*, UV-curable, 3D printable and biocompatible silicone elastomers, Progress in Organic Coatings, 2019, 137: 105372.
https://doi.org/10.1016/j.porgcoat. 2019.105372
- �Ї������W��Է���ڈF� AFM������ͺϲ���ͬ�S3D��ӡ 2026-02-26
- �m�ݴ�W�����܈F� Adv. Mater.��3D��ӡ�ӑB�m�����ݶȉ��֧�����ڼ����Ч�����ޏ� 2026-02-15
- �пƴ�/���������dz����пƴ���� Adv. Mater.��3D��ӡ���D���~ - ���ܺ����F�������F���F�������� 2026-02-02
- �|�ϴ�W��������ڈF� Nat. Commun.����ԪҺ�B���ٵĄӑB������λ���F�ۺ��﹦�ܲ��ϵ����ޏ� 2026-02-28
- ���ݴ�WҦ����/κ��/����Ӱ AFM�����ڹ���|�l���ޏ;۰��������w�Ķ�ܟ���׃ɫ�ɹ��b�� 2026-02-28
- �Ĵ���W���\�s/أ���Fꠡ�Macromolecules����������Y����B-B���ĄӑB�����I�����߿��_�����Ҝ����ޏ͏����w 2026-02-02
- ���_˹�о���һ���t���ЙC�������� 2009-06-25
