2025-08-14 ï¿½ï¿½Ô´ï¿½ï¿½ï¿½ß·ï¿½ï¿½Ó¿Æ¼ï¿½

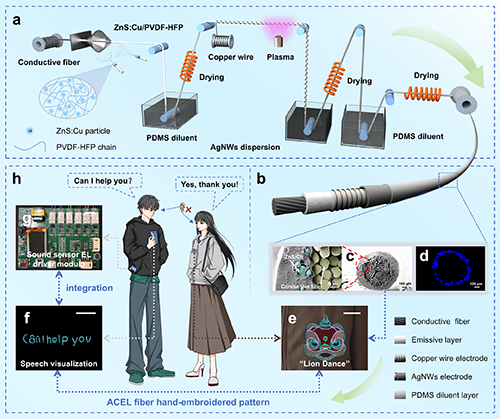

Fig. 1 Design, fabrication, and integration of ACEL fiber-based sound-sensing visual display system. a Schematic diagram of the ACEL fiber preparation process, with an inset showing the luminescent spinning solution composition. b Structural representation of the core-multi-shell ACEL fiber, illustrating its functional layers. c Scanning electron microscopy (SEM) image of the ACEL fiber cross-section, showing the distinct layer structure. d Fluorescence microscopy image of the ACEL fiber cross-section, highlighting the uniform distribution of fluorescent dyes within the color conversion layer. e Example of ACEL fiber integrated into a hand-embroidered ï¿½ï¿½Lion Danceï¿½ï¿½ light-emitting textile pattern. Scale bar, 5 cm. f Luminescent hand-embroidered sentence/word pattern of ACEL fiber used for sound-sensing applications. Scale bar, 5 cm. g A physical image of the sound-sensing EL driver module, designed for speech recognition and volume detection. Scale bar, 1 cm. h Diagram of application scenarios, where the sound sensor captures sound signals to control the light-emitting display of ACEL fibers, facilitating visual barrier-free communication for hearing-impaired individuals.

ï¿½D 2 ACELï¿½wï¿½Sï¿½ï¿½ï¿½É«ï¿½{(diï¿½ï¿½o)ï¿½ï¿½(jiï¿½ï¿½)ï¿½ï¿½ï¿½ï¿½

Fig. 2 Color-conditioning properties of ACEL fibers. a Schematic representation of the structure and color-conditioning mechanism of multicolor ACEL fibers. b Absorption and photoluminescence (PL) spectra of the FY 3G dye. c Absorption and PL spectra of Rh B dye. d Comparison of electroluminescence (EL) spectra of ACEL fibers with and without the color conversion layer. e CIE coordinates of ACEL fibers with and without the color conversion layer. f Fluorescence microscopy images of ACEL fibers integrated with FY 3G and Rh B color conversion layers. g Visual representation of ACEL fibers exhibiting different colors. Scale bar, 1 cm.

ï¿½D 3 ACELï¿½wï¿½Sï¿½ï¿½ï¿½ï¿½W(xuï¿½ï¿½)ï¿½ï¿½ï¿½ï¿½

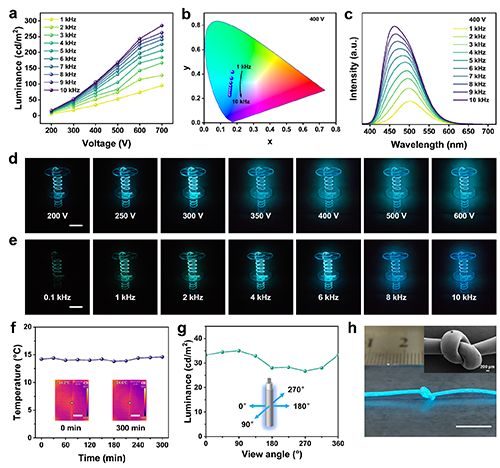

Fig. 3 Performance characteristics of ACEL fibers. a Variation in emitted brightness as a function of applied voltage at driving frequencies. b Change in emitted color coordinates within the CIE 1931 color space with frequency variation (at a fixed voltage of 400 V). The black arrow indicates the shift in color coordinates when the applied frequency increases from 1 kHz to 10 kHz. c Emission spectra of ACEL fibers at different driving frequencies (1-10 kHz) under a fixed voltage of 400 V. d Optical images of ACEL fibers at different applied voltages (with a fixed frequency of 5 kHz). Scale bar, 5 cm. e Optical images of ACEL fibers at different applied frequencies (with a fixed voltage of 300 V). Scale bar, 5 cm. f Temperature variation profiles of ACEL fibers during operation, with the inset showing the corresponding infrared thermography. Scale bar, 0.5 cm. g Dependence of luminescence brightness on the observation angle, with the inset displaying the schematic of the test angle. h ACEL fiber in a knotted configuration, with the inset showing its SEM image. Scale bar, 1 cm.

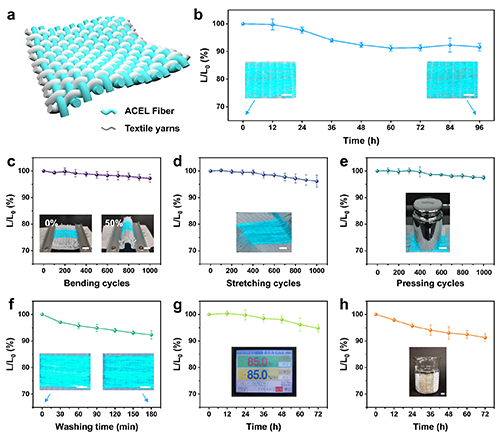

Fig. 4 Performance and durability of ACEL fabrics. (Scale bar, 1 cm. Data presented as mean ï¿½ï¿½ SD, N=3) a Schematic illustration of the plain weave structure of ACEL fabrics. b Durability test results, inset: photographs of ACEL fabric before and after 96 hours of continuous electroluminescence operation. c Bending test, inset: photographs of ACEL fabrics at bending ratios of 0 and 50 %. d Tensile test results, inset: photograph of ACEL fabric under tensile deformation. e Compression test, inset: photograph showing ACEL fabric compressed by a 500 g weight. f Washing test, inset: photograph of ACEL fabric before and after washing for 180 minutes. g Double 85 wet-hot test, inset: interface displaying the parameter settings of the constant temperature and humidity chamber. h Sweat resistance test, inset: photograph of ACEL fabric immersed in synthetic sweat.

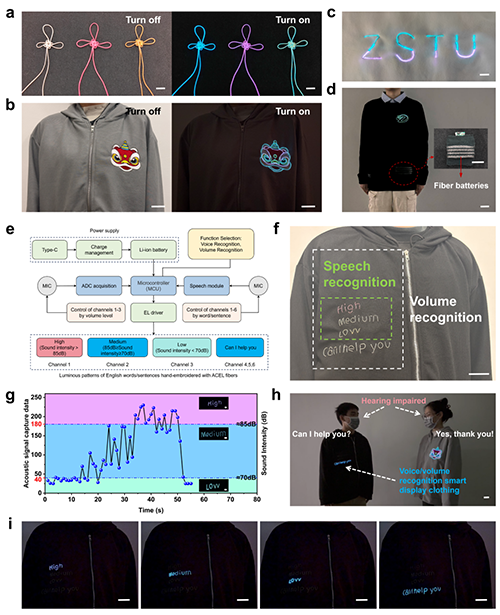

Fig. 5 Applications of ACEL fibers in intelligent textiles and interactive systems. a Auspicious knots are woven using ACEL fibers. Scale bar, 1 cm. b Hand-embroidered outline of the ï¿½ï¿½Lion Danceï¿½ï¿½ pattern, incorporating traditional cultural elements, using ACEL fibers. Scale bar, 5 cm. c Hand-embroidered monogram with color-blocking effects created using ACEL fibers. Scale bar, 1 cm. d Electronic garments incorporating ACEL fiber weaving patterns and embedded fiber batteries. Scale bar, 5 cm. e Block diagram of a sound sensor integrated with an ACEL device for voice recognition and volume detection. f Schematic of the external functional division of an intelligent e-garment with a visual display system for sound sensing. Scale bar, 5 cm. g Hand-embroidered word patterns using ACEL fibers, which alternate illumination based on changes in sound intensity. Scale bar, 1 cm. h Schematic diagram of barrier-free communication for the hearing impaired enabled by a smart electronic garment with a sound-sensing visual display system. Scale bar, 5 cm. i Precise word/sentence illumination controlled by voice recognition in a smart electronic garment equipped with a sound-sensing visual display system. Scale bar, 5 cm.

Í¨Óï¿½ï¿½ï¿½ßºï¿½ï¿½ï¿½

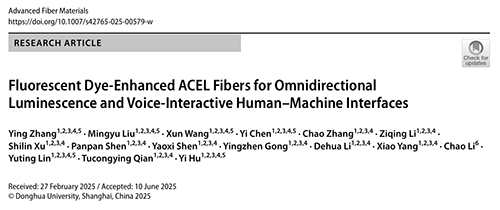

Ôï¿½ï¿½æœ½Ó£ï¿½https://doi.org/10.1007/s42765-025-00579-w
