Engineering novel high-flux thin-film composite (TFC) hollow fiber nanofiltration membranes via a facile and scalable coating procedure
作者：Chuanfeng Wang, Yingbo Chen*, Xiaoyu Hu, Pengfei Guo
關(guān)鍵字：NanofiltrationHollow fiber membraneThin-film composite (TFC)In-situ interfacial polymerizationSurface coating
論文來源：期刊
具體來源：Desalination Volume 526, 15 March 2022, 115531
發(fā)表時間：2022年

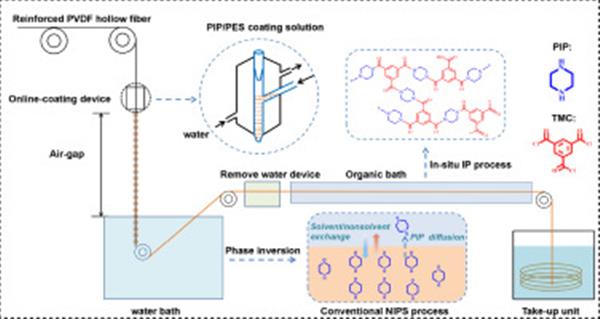

A novel defect-free polyamide/(polyether sulfone/poly(vinylidene fluoride)) PA/(PES/PVDF) thin-film composite (TFC) hollow fiber membrane (HFM) with desirable separation characteristics were developed through a facile and scalable coating procedure. By the introduction of piperazine (PIP) monomers into the PES coating solutions, the functional monomer-enriched PES coating layer was formed on the shell side of porous matrix-reinforced hollow fiber (HF) support through phase inversion process. Subsequently, PIP and TMC was interfacial polymerized during the fiber coating line to form a thin and defect-free polyamide (PA) functional layer for TFC HFM with high water permeability. Furthermore, the introduction of aqueous monomers only into the PES layer allowed economizing the cost of membrane manufacturing compared with bulk modification of the membrane substrate. Interestingly, the formation of bowl-like structures endowed the separation layer with higher permeation surface area and thus favored high water permeability. On combining these separation features, the optimized TFC membranes presented a high pure water permeability (PWP) of 13.8 L·m?2·h?1·bar?1, approximately twice than that of conventional TFC membrane, with a satisfying Na2SO4 rejection of 98.2%. Moreover, the PA/(PES/PVDF) TFC HFM exhibited excellent stability, backwash ability and anti-fouling ability, suggesting its huge potential for the water purification. Compared with the conventional two-step IP process on flat sheet membrane, the in-situ IP procedure performed on HF greatly simplifies the manufacturing process, shortens the production period and reduces monomer usage while the high packing density and great surface area per unit volume are obtained. This work may provide a simple and economical strategy for engineering high-performance TFC HFM.
