Fabrication of separable microneedles with phase change coating for NIR-triggered transdermal delivery of metformin on diabetic rats
writer：Tianqi Liu, Guohua Jiang,* Gao Song, Jiangying Zhu, and Yuhui Yang
keywords：Microneedles, NIR-triggered; photothermal conversion; drug release
source：期刊
specific source：Biomedical Microdevices
Issue time：2019年

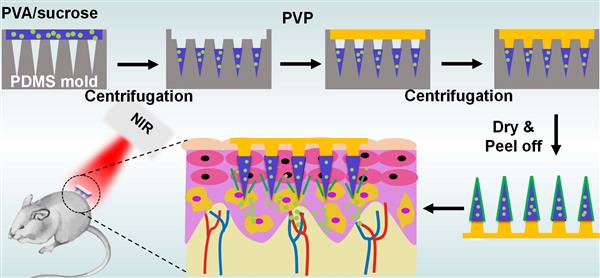

To enhance the compliance of drug delivery for patients, the novel near-infrared (NIR) light-triggered and separable microneedles (MNs) have been developed in this work. Firstly, prussian blue nanoparticles (PB NPs) as the photo-thermal conversion factor and metformin as the hypoglycemic drug were embedded into the separable arrowheads, which consisted by poly (vinyl alcohol) and sucrose (PVA/Suc). The arrowheads of MNs were located on soluble solids supporting substrates that produced by poly(vinyl pyrrolidone) (PVP). Lauric acid (LA) as the phase transition coating covered on the surface of the MNs due to its lower phase transition temperature (~44 oC). Then, the separable arrowheads could be left into the skin because of the absorbing the interstitial fluid (IF) by the solid supporting substrates. With the irradiation of NIR light, LA could be melted due to the role of PB NPs in photo-thermal conversion, thus releasing the metformin from arrowheads. Compared with the traditional subcutaneous injections, the hypoglycemic effect was evaluated by the drug-release behaviors induced by NIR in vivo. The results showed that metformin could be allowed to on-demand release under the NIR irradiation. And the as-obtained MNs exhibited a good hypoglycemic effect, hypotoxicity and low inflammation reaction compared with those of traditional subcutaneous injections. The results indicate that the fabricated MNs have the potential treatment for diabetes due to their safety, convenience and painlessness.
