国内精品国产三级国产在线专_欧美日韩在线播放一区二区_成人xxxx视频_欧美激情视频一区_色女人综合av_久久久亚洲影院_久久久久久九九_成人免费网站在线_日韩美女毛茸茸_狠狠干一区二区

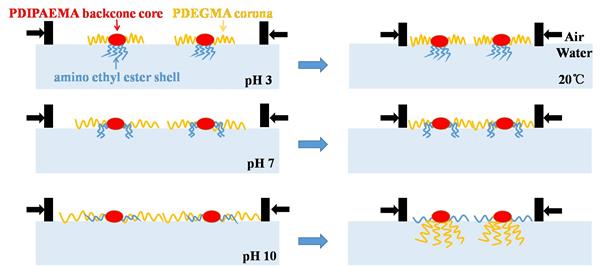

The aggregation behavior of two pH- and temperature-responsive diblock copolymers of poly[di-(ethylene glycol) methyl ether methacrylate]-block-poly[2-(diisopropylamino) ethyl methacrylate] (PDEGMA-b-PDIPAEMA) at the air/water interface and the structures of their Langmuir-Blodgett (LB) films were studied by the Langmuir monolayer technique and atomic force microscopy, respectively. At the air/water interface, PDEGMA-b-PDIPAEMA tends to form the core-shell-corona micellar structure composed of a PDIPAEMA main chain core, an amino ethyl ester shell, and a PDEGMA corona. Under acidic, neutral, and alkaline conditions, PDIPAEMA blocks are completely protonated, partially protonated, and completely non-protonated, respectively, and the protonated amino ethyl ester groups are immersed in water before monolayer compression, whereas PDEGMA coronas are adsorbed at the interface. At pH 3, 7, and 10, the limiting areas (A₀) for PDEGMA42%-PDIPAEMA58% (weight percents) and PDEGMA55%-PDIPAEMA45% are 8.2/10.2/14.0 and 6.7/8.3/8.4 nm², respectively. The A₀ values of the former copolymer are larger than those of the latter. This is because the shells in the former copolymer are denser due to the higher polymerization degree of PDIPAEMA blocks, providing greater steric hindrance for PDEGMA coronas and making the latter more extended at the interface. In contrast to other copolymer systems, the effect of temperature on the isotherms of PDEGMA-b-PDIPAEMA is less obvious.

Article link: http://doi.org/10.1002/app.54898.

Read-only version: https://onlinelibrary.wiley.com/share/author/QKSVRWRPAN6DYVHXEQIJ?target=10.1002/app.54898
