������̼����һ�N����Ч�����w������������������ŷ����ѽoȫ������B�h�������ˇ��ص�Σ�������ЙC�ۺ������߱ȱ���e���|�p�������Ժá��ϳɗl���غ��Һϳɷ����Ķ����Եȃ��c�ڶ�����̼���@����������õđ���ǰ����Ŀǰ���о�����Ҫ���������������ЙC�ۺ���Ĺ��ܻ�������ͨ�^�{�ؾۺ���Ͷ�����̼֮�g������Á���߲��ϵĶ�����̼������������Ҋ�ķ�����Ҫ��ͨ�^�ۺ���ĺ�ϳ����ͬ���ܶȆ��w��ֱ�Ӿۺ��ڲ��ϵĿױ��������T�簱�����������Ȼ����u��������������������H������̼�ĘO�Թ��܈F���������ԭ������ԭ�Ӻ���ԭ�ӵ��ڃȵ��sԭ����ֵ��ע���ǵ��������ЉA�Եĵ�ԭ�ӿ�ͨ�^ż�O-�ĘO��·��˹��-·��˹�A����Á���߾ۺ����܌�������̼���ӵ��H�������M�������ۺ�����ϵĶ�����̼�IJ��@������������͚��w�����x���������������ڷ����ܶ���Փ��ģ�M���������w���^�ߵ�����ܶȷֲ���������������ϵĶ�����̼�������������h��������һ��Ƀɂ���ɂ�����̼�h���s�h�Թ��Эh߅���γɵĶ�h�ЙC�����������ڷ����д��ڵ�����ܗ�wϵ���������и�늵�����������������ژ������ж�����̼���@�������õĶ���ЙC�������c��ͬ�r��������һ�N����Ҫ�ij��h�����������H��Դ�V�������ڹ��I�ϳ������Ƃ��ض��Ļ���ԭ����Ȼ���������^��ķ�������λ�c����ӵ����Ե��λ��ھ������ڶ�����̼�����Ķ�ײ��Ϸ������о��r�Ј������������y���������в�ͬ�λ��Ę�����Ԫ�������ژ����Y���·f���ЙC������ϣ��������ò���Ҳ�������F�����õĚ��w�������ܡ�
���ڴ����T�ض����ڈF꠲��ò�ͬ���尷(TPB, NPB, ��,��-TNB)�阋�����w��ͨ�^����һ���ĸ�������������������ϳ������N�Y���·f�ij����ۺ������(Polymer 1, Polymer 2, Polymer 3)���Ҿ����^�ߵĮa����

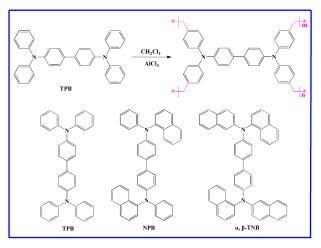

�D1. �ۺ���ĺϳ�ʾ��D�͘�����Ԫ�Ļ��W�Y��
�о����������þۺ��������^�õĿ����͚ܺ��w�������ܣ�����SBET���_1717 m2 g-1��SLangmuir��2135 m2 g-1��273.15 K/1.00 bar�µ�CO2���@���ܞ�18.85 wt%. �������ۺ�����298.15 K��CO2/N2��CO2/CH4�Ě��w�����x���Կ��_24.9��6.3��
�D2. (a)77.3 K�¾ۺ�����ϵĵ�������-Ó��������(b) ����DFT����Ӌ��ó��ľۺ�����ֲ�������(c) �ۺ�������ׅ^��(<2 nm)�Ŀ��ֲ�����
��1. �ۺ���Ŀ�����
|
Samples |
SBETa (m2 g-1) |
SLb (m2 g-1) |
MAc (m2 g-1) |
PVd (cm3 g-1) |
MPVe (cm3 g-1) |
|
Polymer 1 |
874 |
1119 |
457 |
0.49 |
0.18 |
|
Polymer 2 |
1268 |
1543 |
821 |
0.67 |
0.32 |
|
Polymer 3 |
1717 |
2135 |
940 |
1.08 |
0.37 |
|
a Apparent surface area calculated from nitrogen adsorption isotherms at 77.3 K using the BET equation. b Surface area calculated from nitrogen adsorption isotherms at 77.3 K using the Langmuir equation. c t-Plot micropore area. d Pore volume calculated from the nitrogen isotherm at P/P0 = 0.995 and 77.3 K. e t-Plot micropore volume calculated from the nitrogen isotherm at P/P0 = 0.050. |
|||||

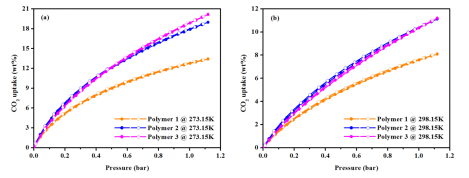

�D3. (a) 273.15 K/1.13 bar�¾ۺ�����ϵ�CO2����-Ó��������(b) 298.15 K/1.13 bar�¾ۺ�����ϵ�CO2����-Ó������

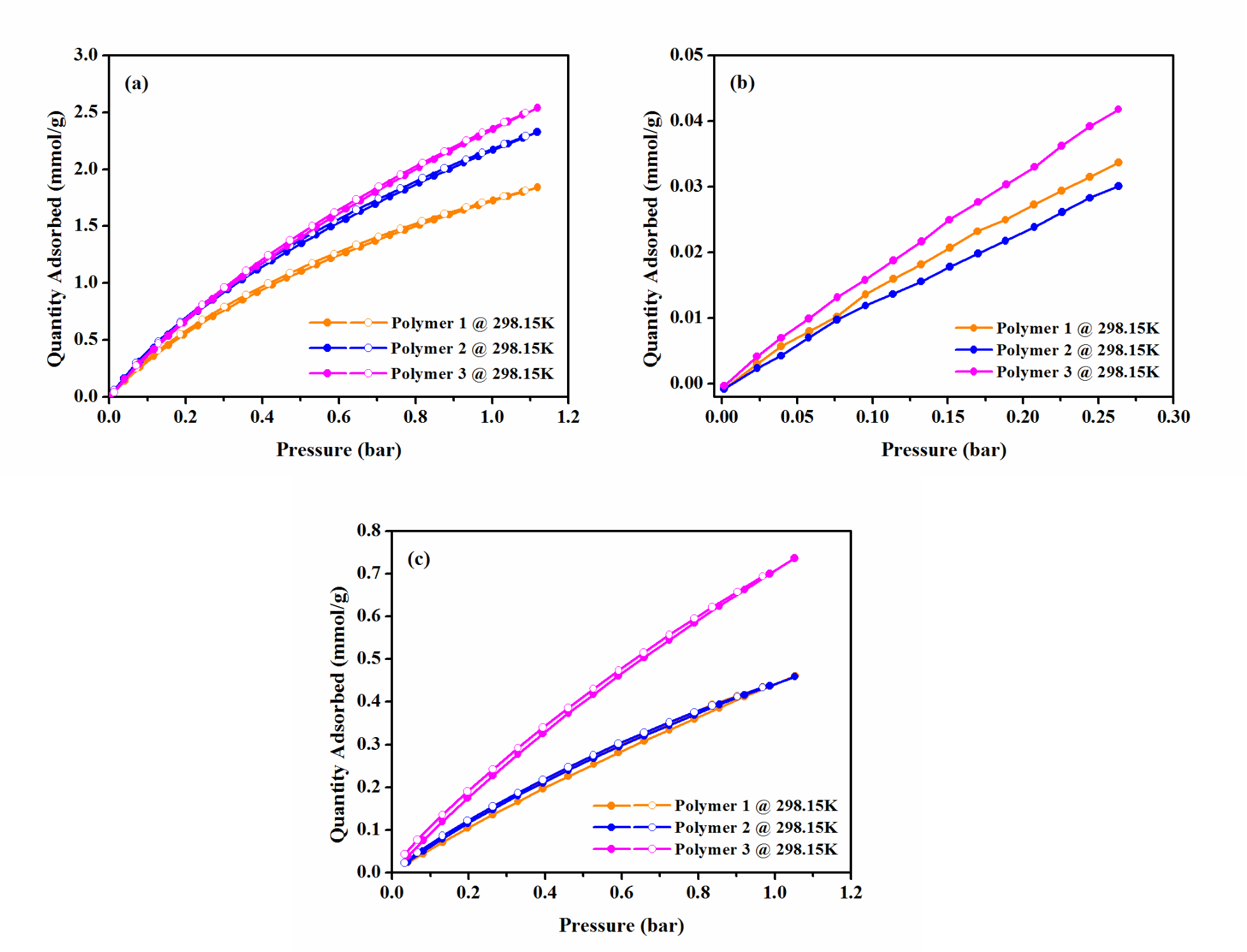

�D4. 298.15 K�¾ۺ�����ϵ�CO2 (a), N2 (b)��CH4 (c)����������
�D5. ����298.15 K�¾ۺ����CO2 (��ɫ), N2 (�{ɫ)��CH4 (��ɫ)�����������ú�������б�ʷ�Ӌ��Polymer 1��CO2/N2��CO2/CH4�Ě��w�����x���ԡ�
�D6. ����298.15 K�¾ۺ����CO2 (��ɫ), N2 (�{ɫ)��CH4 (��ɫ)�����������ú�������б�ʷ�Ӌ��Polymer 2��CO2/N2��CO2/CH4�Ě��w�����x������
�D7. ����298.15 K�¾ۺ����CO2 (��ɫ), N2 (�{ɫ)��CH4 (��ɫ)�����������ú�������б�ʷ�Ӌ��Polymer 3��CO2/N2��CO2/CH4�Ě��w�����x���ԡ�
��2. �ۺ���Ě��w�������͚ܺ��w�����x����
|
Samples |
CO2 uptakea (wt%) |
CO2 uptakeb (wt%) |
CO2 selectivityc (initial slope) |
|
|
CO2/N2 |
CO2/CH4 |
|||
|
Polymer 1 |
12.76 |
7.58 |
20.0 |
5.7 |
|
Polymer 2 |
16.47 |
9.54 |
24.9 |
6.3 |
|
Polymer 3 |
18.85 |
10.35 |
19.4 |
4.1 |
|
a CO2 uptake determined volumetrically using a Micromeritics ASAP 2020 M analyzer at 1.00 bar and 273.15 K. b CO2 uptake determined volumetrically using a Micromeritics ASAP 2020 M analyzer at 1.00 bar and 298.15 K. c Adsorption selectivity of CO2 over N2 and CO2 over CH4 respectively calculated by employing the initial slope ratio from the Henry��s law constants at 298.15 K and a low pressure coverage of less than 0.3 bar. |
||||
�D8. 77.3 K/1.13 bar�¾ۺ�����ϵĚ������-Ó������

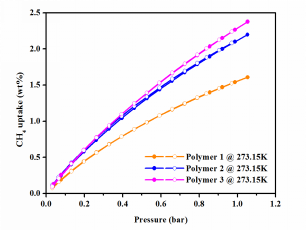

�D9. 273.15 K/1.13 bar�¾ۺ�����ϵ���������-Ó������.
��3. �ۺ�������ͼ������w��������
|
Samples |
H2 uptakea (wt%) |
CH4 uptakeb (wt%) |
|
Polymer 1 |
1.16 |
1.55 |
|
Polymer 2 |
1.44 |
2.12 |
|
Polymer 3 |
1.62 |
2.29 |
|
a H2 uptake determined volumetrically using a Micromeritics ASAP 2020 M analyzer at 1.00 bar and 77.3 K. b CH4 uptake determined volumetrically using a Micromeritics ASAP 2020 M analyzer at 1.00 bar and 273.15 K. |
||
���Y�����������þۺ���Ŀ����ܿɵ������õ��{�����@����������И������w������ͬ�����g�Ǽ���ֻ���c��ԭ�����B�Ķ˻����܈F�ʬF����ͬ�IJ�������λ��ȱ��������^��ķ�������λ�c���S���˻��ı������λ�ȡ�������w�з�������λ�c�Ĕ������࣬һ���挢���ӿ췴�����M������һ����߀����߷����Ľ�����ͨ�^�ۺ���Ƭ�ΰѿ��g�ָ���С�Ŀ����Ķ����F�ۺ���Y���������{�������������þۺ���Ķ�����̼��������Ҳ�õ����õ��{�����@��������λ��ȱ������и��õĦ���ܗ�wϵ�������õĸ���������S�����w�е��������λ�ȡ�����λ��Ĕ��������������w�ĸ������Ҳ�S֮���������������ܶ���Փ��ģ�M�����������w�����^����������������ڲ��ϵĶ�����̼����������������ۺ�����ϵ�������̼��������Ҳ���������õ��{����
�������P�ɹ��l����Macromolecules (Macromolecules. 2018, DOI:10.1021/acs. macromol.8b00274 )����Փ�ĵĵ�һ���ߞ��A�пƼ���W���W�c�����WԺ��ʿ�����p�p��Ŀǰ���T�ض������n�}�M�^�m�о��W����ͨӍ���ߞ��T�ض�������
- �A�ƴ��T�ض�����/��Ц��о��T�F� Adv. Mater.��������Ԫ���Թ��̲����Ƃ䳬����ۺ���F���w�e��������惦 2025-03-16
- �Ϻ�����������/����V���|�A��W��ҫ�� Green Chem. �C���������ۺ��� - ������̼���@�c�D�������� 2024-05-07
- �A�ƴ��T�ض�/��ЦFꠡ�Adv. Mater.�����ͳɱ��Ƃ�߱ȱ���e�����ۺ������ڼ����Ч�惦 2024-02-08
- �����w�n�}�M Macromolecules����/�Ņfͬ�{��-�˚��Y��Fe3O4@��ܗ�ۺ�����p�T��ATRP��øż���� 2025-04-25
- ��h��W���w�n�}�M Macromolecules������ົ��пչ�ܗ�ۺ�������t����T��ATRP���ڹ�fͬø��ѭ�h 2024-10-11
- �Ͼ����I��W�O���i���ڈF� Nat. Commun.���x�ӻ����{��ͨ��Ĥ���Fһ�����r��x�Ӹ�Ч���x 2024-09-01
