国产区二精品视,欧美高清性xxxxhdvideosex,久久久久久久久国产精品

2022-04-18 ï¿½ï¿½Ô´ï¿½ï¿½ï¿½ß·ï¿½ï¿½Ó¿Æ¼ï¿½

Fig. 1. Physicochemical properties of HAC. (a) and (b) Contact angles between Bare Zn/HAC-modified Zn electrode and aqueous electrolyte at 5 min; (c) FTIR spectra of HAC before and after plating of Zn²⁺; (d) Nyquist plots of Zn-Zn symmetric cells with Bare Zn/HAC-modified Zn electrode; (e) Transference number of Zn²⁺ before and after coating HAC; (f) Stress-strain curve of HAC film.

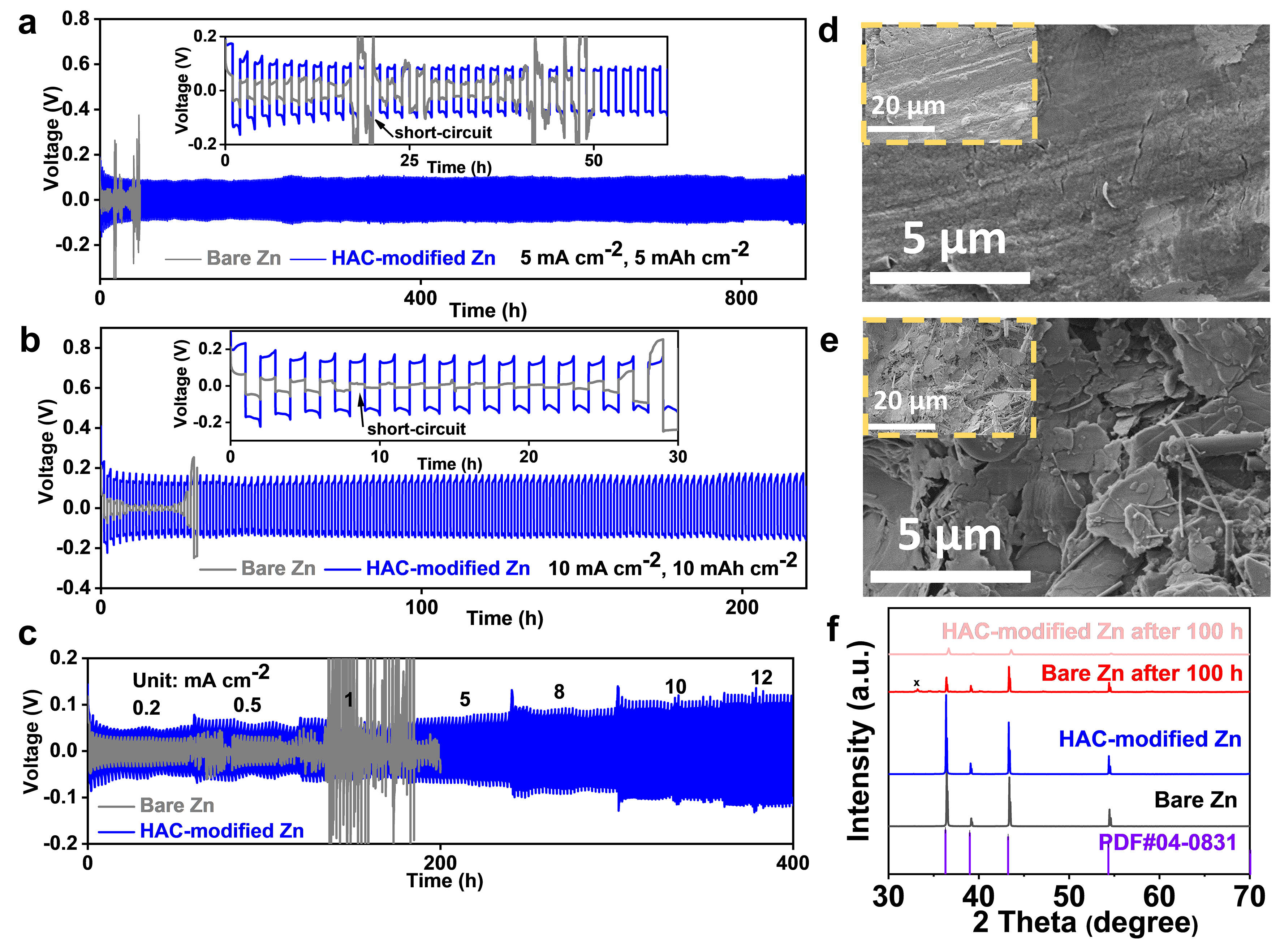

Fig. 2. Electrochemical stabilities between Zn anode (Bare Zn and HAC-modified Zn) and aqueous electrolyte investigated via galvanostatic electro-plating and stripping processes. (a), (b) and (c) Zn-Zn symmetric cells with Bare Zn and HAC-modified Zn cycled at a current density of 5 mA cm^-2, 10 mA cm^-2, and varying current densities. Insets of (a) and (b) are the magnified view of voltage profiles. (d) and (e) Top-view SEM images of HAC-modified Zn and Bare Zn surface after cycling at a current density of 1 mA cm^-2 with a capacity of 1 mA h cm^-2 for 100 h. (f) XRD patterns of Bare Zn and HAC-modified Zn anodes before and after cycling at a current density of 1 mA cm^-2 with a capacity of 1 mA h cm^-2 for 100 h.

Fig. 3. Electrochemical reversibility between Bare Zn and HAC-modified Zn anodes with aqueous electrolyte. (a) Tafel curves of Bare Zn and HAC-modified Zn. (b) Chronoamperograms (CAs) of Bare Zn and HAC-modified Zn under a -200 mV overpotential. (c) Initial nucleation overpotentials of Zn plating on Ti foil in Bare Zn and HAC-modified Zn asymmetric cells at 5 mA cm^-2. (d) Coulombic efficiency (CE) of Zn plating/stripping in Bare Zn-Ti and HAC-modified Zn-Ti cells at a current density of 5 mA cm^-2 for 10 min and (e,f) corresponding voltage profiles at various cycles.

Fig. 4. Electrochemical performance of Zn-AC ion hybrid supercapacitors. (a) and (b) Galvanostatic capacity-voltage curves of the Zn-AC hybrid capacitors with Bare Zn and HAC-modified Zn anodes showing a 0.1 V increase in electrochemical window with the introduction of HAC. (c) CV curves at scan rates indicated. (d) and (e) Galvanostatic capacity-voltage curves and long-term cycling stability at 10 A g^-1.

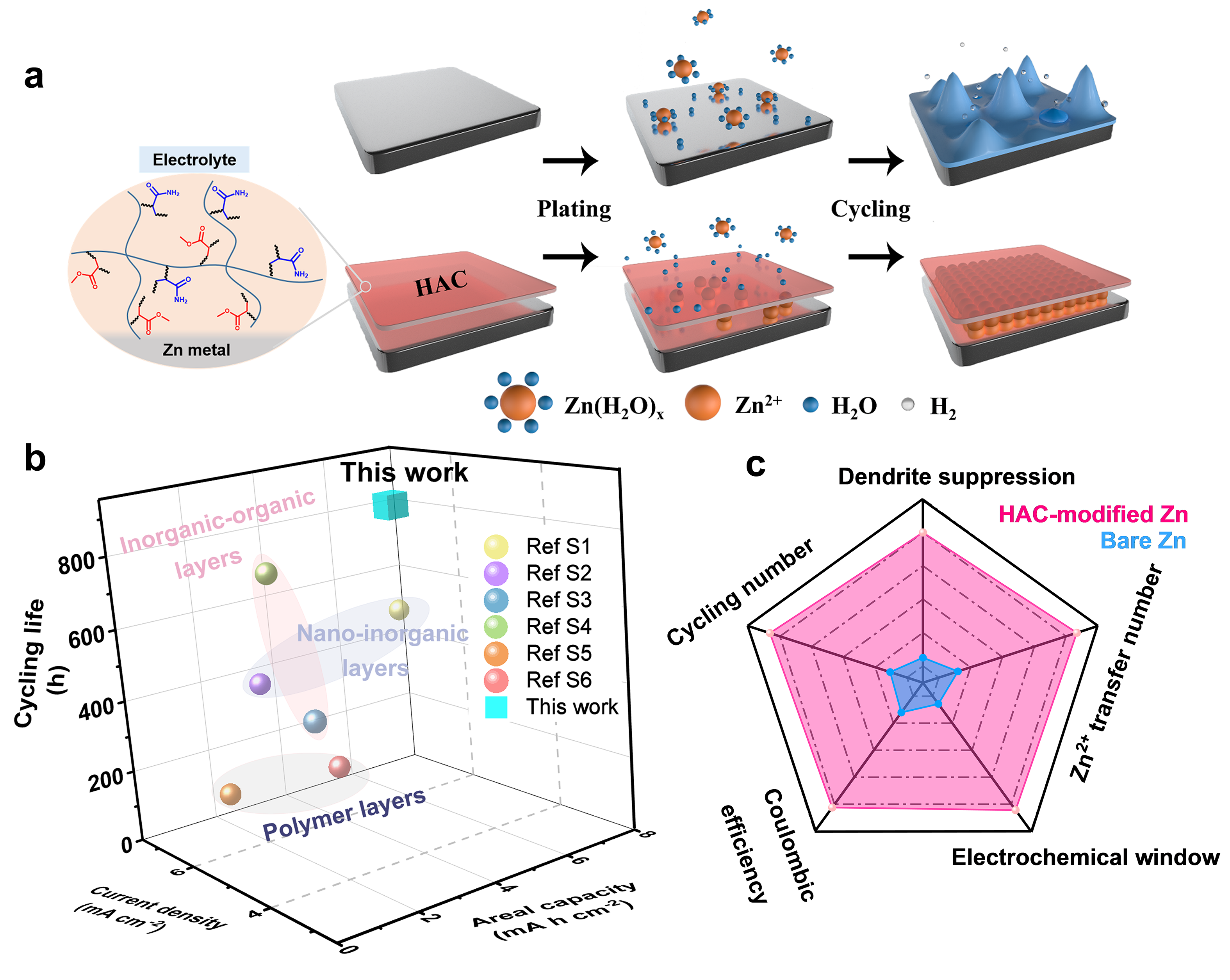

Fig. 5. (a) Schematic illustration of morphology evolution for both the symmetric cells with different electrodes during stripping/plating. (b) Comparison of performance among coating-modified Zn anode devices (see Table S1 for references). The selected references have a current density greater than 3 mA cm^-2. (c) Comparison of electrochemical performance of cells with Bare Zn and HAC-modified Zn anodes.

ï¿½ï¿½ï¿½Pï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ ï¿½ï¿½Robust Zn anode enabled by a hydrophilic adhesive coating for long-life zinc-ion hybrid supercapacitorsï¿½ï¿½ï¿½ï¿½ï¿½}ï¿½lï¿½ï¿½ï¿½Ú¡ï¿½Chemical Engineering Journalï¿½ï¿½ï¿½Ï¡ï¿½Õ“ï¿½Äµï¿½Ò»ï¿½ï¿½ï¿½ßžï¿½ï¿½ï¿½ï¿½ï¿½Ê¯ï¿½Í´ï¿½Wï¿½ï¿½Ê¿ï¿½Ð¾ï¿½ï¿½ï¿½Å£ï¿½ï¿½ï¿½ÍBï¿½Tï¿½ï¿½Wï¿½ï¿½Ê¿ï¿½Ð¾ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½Ê¯ï¿½Í´ï¿½Wï¿½ï¿½ï¿½@ï¿½ï¿½ï¿½ï¿½ï¿½Úºï¿½ï¿½ï¿½É½ï¿½ï¿½ï¿½ï¿½ï¿½ÏŒï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½ï¿½Ð¾ï¿½ï¿½Tï¿½ï¿½Õ“ï¿½Ä¹ï¿½Í¬Í¨Óï¿½ï¿½ï¿½ß¡ï¿½

Ôï¿½ï¿½æœ½Ó£ï¿½https://doi.org/10.1016/j.cej.2022.136217

ï¿½ï¿½ØŸï¿½Î¾ï¿½Ý‹ï¿½ï¿½xuï¿½ï¿½

ï¿½ï¿½ï¿½Pï¿½ï¿½Â„

ï¿½\ï¿½ï¿½ï¿½P×¢ï¿½ß·ï¿½ï¿½Ó¿Æ¼ï¿½

ï¿½ï¿½ï¿½ï¿½>>ï¿½ï¿½ï¿½ï¿½ï¿½YÓ

ï¿½ï¿½ï¿½ï¿½>>ï¿½Æ½ï¿½ï¿½ï¿½Â„

国内精品国产三级国产在线专_欧美日韩在线播放一区二区_成人xxxx视频_欧美激情视频一区_色女人综合av_久久久亚洲影院_久久久久久九九_成人免费网站在线_日韩美女毛茸茸_狠狠干一区二区

ï¿½\ï¿½ï¿½ï¿½P×¢ï¿½ß·ï¿½ï¿½Ó¿Æ¼ï¿½
