国内精品国产三级国产在线专_欧美日韩在线播放一区二区_成人xxxx视频_欧美激情视频一区_色女人综合av_久久久亚洲影院_久久久久久九九_成人免费网站在线_日韩美女毛茸茸_狠狠干一区二区

  �����w�ȳ��d�M�����������^�����������W���ܣ��������������ޏ������������ڰl���p���r�����y�֏͵�ԭ���ĽY�������ܣ��M������������nj��F���d�M��������������Ч��ʩ��ˮ���z����һ�Nܛ����ϣ��������õ����������ԣ�������M�������I���ѽ��õ��ˏV���đ��ã�Ȼ�����������^�͵����W���ܣ����Ŀ������ȣ��^�͵ė���ģ���Լ��^����g�Եȣ����Լ���ˮ�h���в�������ȱ�c������������������d�M���еđ��á���������ߏ�ˮ���z�@���ˏV������������о�������ȡ����һ���ijɹ���Ȼ�������ڸߏ�ˮ���z�����^�͵�ģ�������������ڸ��졢���°�ȸ�ģ��������d�M���đ��ã���Ŀǰ��ģ��ˮ���z�Ƃ�ď��s�ԡ��ĕr���Լ�ˮ�h���еIJ������Ե�ȱ�c��ʹ����������M���������о������r�Ј������ˣ��OӋһ�N������Ч���Ƃ�ߏ�����ģ��ˮ���z�����܉���ˮ�С�PBS�б��ַ�����ˮ���z�ķ�����Ȼ���ںܴ������

  �����������]������W���ďV���ڈF������һ�N���W���������ӡ��ĸ��ͨ�^һ�Nȫ�µĚ��I���wNASC��ֻ���ш����NAGA��會ɂ������g��CH2�Q��NH��ʹNASC��朎���һ�������I��һ����������OӋ�c�ϳɣ��ɹ��Ƃ���PNASC�����Ӿۺ���ˮ���z�����ڂ�朏��Ě��I��“���ã���Ûƽ��֮���ij����Ӿۺ���ˮ���z�����쏊�ȿ��_1.7-4.7 MPa������ģ���_48.4-100.3 MPa�����ё�׃�_341-638%���g�Կ��_5.66-20.35 MJ m^-3���h���������ֹ����ij����Ӿۺ���ˮ���z ��Fig. 1����ԓ�Fꠌ���PNASCˮ���z���W�����C���M����̽����

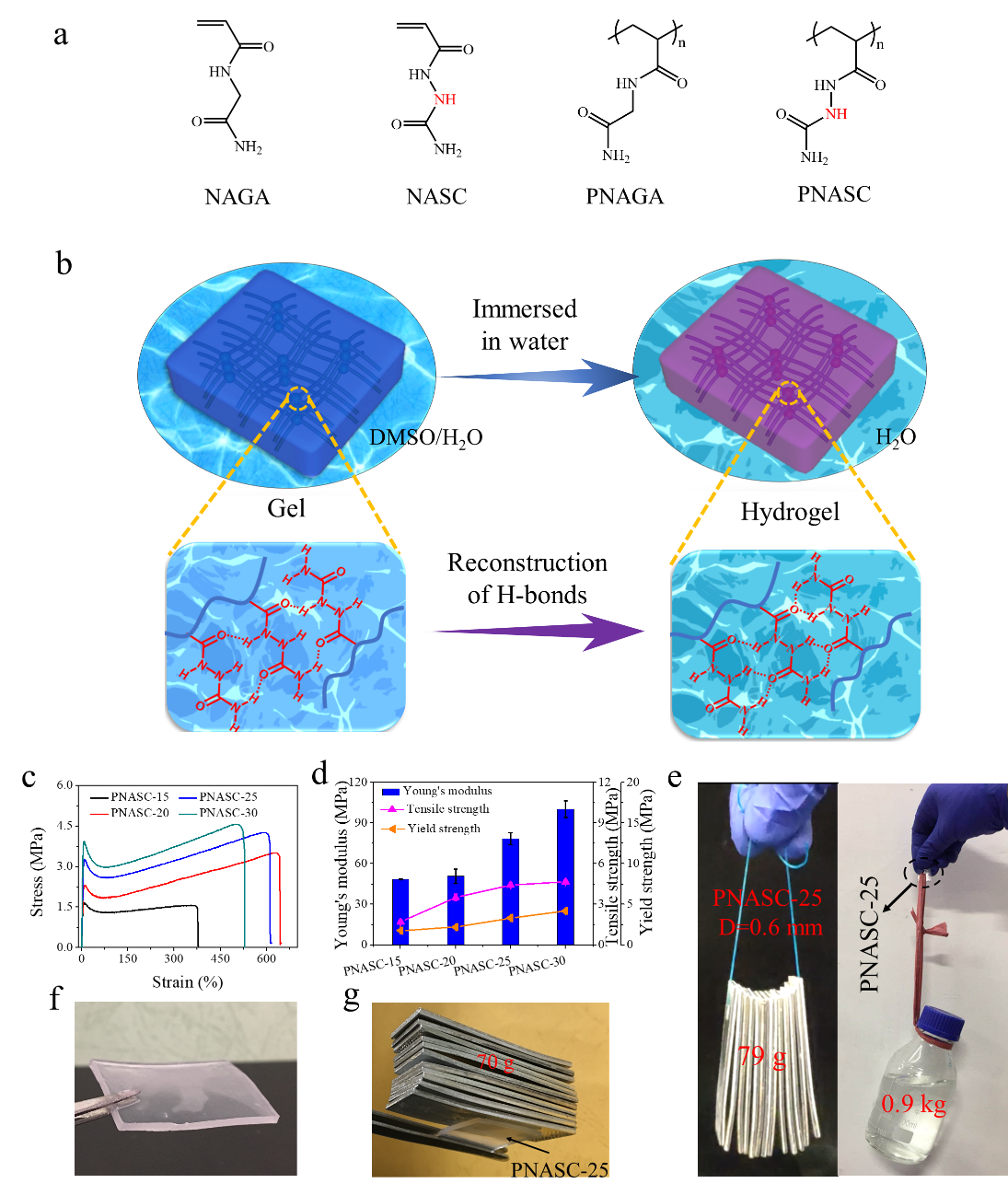

Fig. 1. (a): Molecular structures of NAGA, NASC, PNAGA and PNASC. (b): Schematic illustration of reconstruction of hydrogen bonding of amide and urea in PNASC gels when DMSO is replaced with water. (c): Tensile stress-strain curves. (d): Tensile strength, Young��s modulus and yielding strength of PNASC hydrogels with different initial monomer concentrations (n=3). (e, f, g) Photos portraying the high stiffness of the PNASC-25 hydrogels. (e): 79 g of aluminum sheets can be lifted up by a length of hydrogel line (d=0.6 mm) without stretching, and nylon cord is threaded through a hole in a piece of PNASC-25 hydrogel sheet (3 cm × 1.5 cm × 0.2 cm) and lifts a bottle of water weighing 0.9 kg without occurrence of deformation of the hydrogel hole. The hydrogel sheet (3 cm × 2.5 cm × 0.2 cm) was able to bear self-weight (f) and 70 g of aluminum sheets without collapse (g).

  ���⣬ֵ��ע����ǣ�ԓ���w�����cAAm��CBAA�ȴ����ԵĆ��w�����Ƃ����һ�����W��������PBS�б��ַ����ij����Ӿۺ���ˮ���z������̽��PNASC��ˮ���z�đ��ã�ԓ�Fꠌ����wNASC�c���p�I�ĸ��ع��ۣ��Ƃ�P(NASC-co-HepMAm) ����ˮ���z΢�ܣ�ԓˮ���z��37 ����Ա��ָߵ�ģ�������Ҿ������õ����������Ժ�ѪҺ�����ԣ����ص�����������俹��Ѫ���ܣ�ʹ�����������R�rѪ������Ұ��ͻ�l�¹ʌ��µ�Ѫ�����Ѷ������֫�wȱѪ�ľ��Σ����ھo����r�µ��܂�֫�w��ѪҺ���ٻ֏;��Н��ڵđ��Ãrֵ (Fig. 2)��

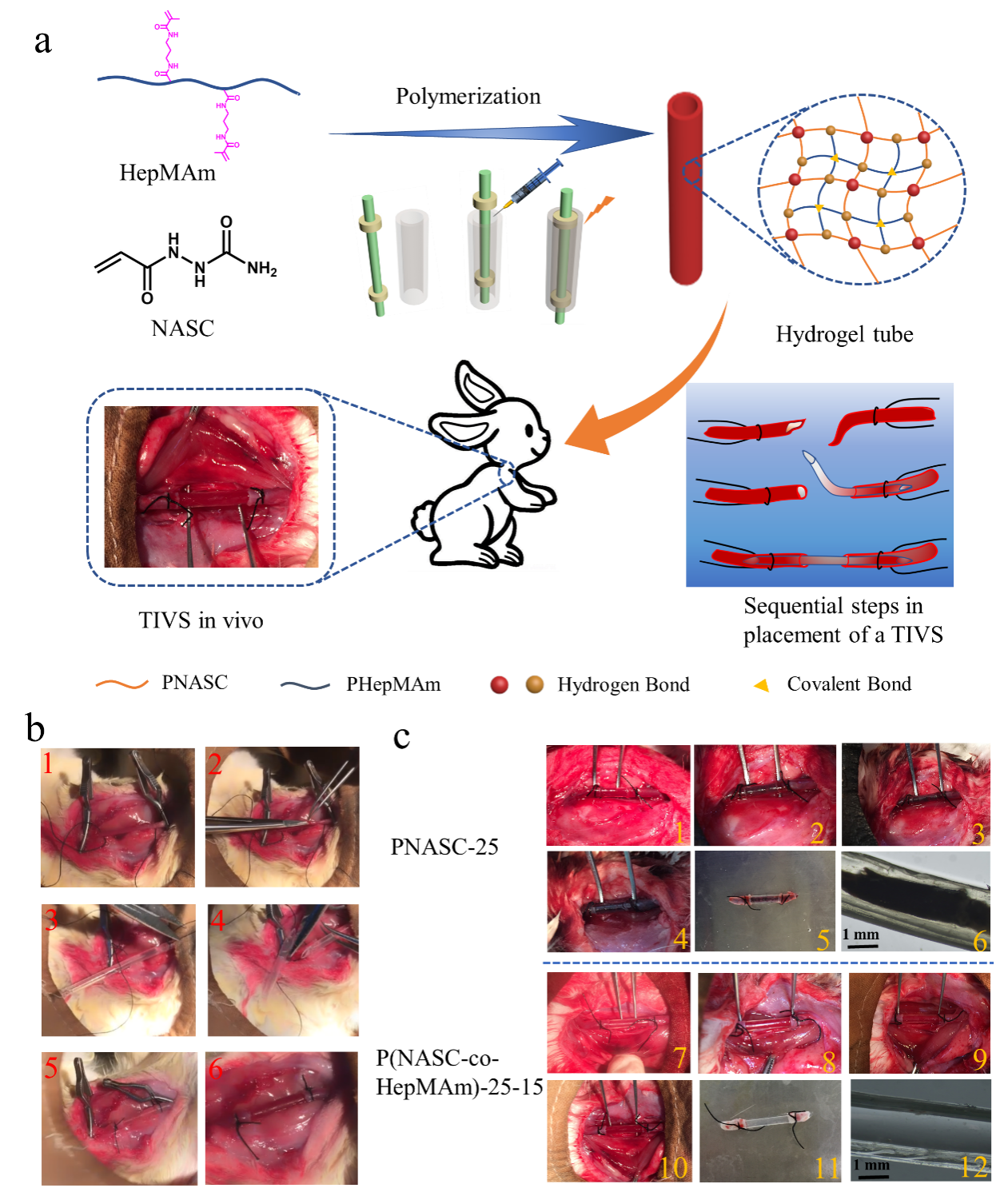

Fig. 2. (a) Schematic illustration of the fabrication of P(NASC-co-HepMAm) hydrogel tubes and their application as the TIVS in vivo. (b) Sequential steps in placement of hydrogel tube for TIVS in a rabbit model: (1) The rabbit��s arteria carotis was clamped on both sides by the artery clamp; (2) Defective treatment of blood vessels located between two arterial clips; (3) One end of the trimmed hydrogel tube was inserted into the rabbit��s carotid artery (3-4 mm depth) through the defect; (4, 5) Another end of the hydrogel tube was trimmed and the rabbit carotid artery was amputated; immediately, this end of the trimmed hydrogel tube was inserted into rabbit carotid artery (3-4 mm); (6) The arterial clip was removed to restore the blood flow. (c) (1, 7), (2, 8), (3, 9), and (4, 10) are the photos of blood color change in the PNASC-25 and P(NASC-co-HepMAm)-25-15 hydrogel tubes after being implanted for 0, 1, 2, and 4 h. (5, 11) are the photos of the PNASC-25 and P(NASC-co-HepMAm)-25-15 hydrogel tubes removed from the end of arteria carotis. (6, 12) Stereomicroscopic images of the PNASC-25 and P(NASC-co-HepMAm)-25-15 hydrogel tube luminal surface.

  �@��о��_����һ�N�dz�������ͨ�õ��Ƃ�����ض����ܵĸߏ��ȡ��߄��ȡ����g���Լ���Û�����ij����Ӿۺ���ˮ���z�IJ��ԣ��������ڳ��d�M���đ����о�����Ҫ�����x��

  Ŀǰ���������Ѱl���ڡ�Materials Horizons���ϣ�Փ�ĵ�һ���ߞ�����W���όWԺ��ʿ����������ͨӍ���ߞ�����W���όWԺ���ďV������

  Փ��朽ӣ�https://pubs.rsc.org/en/content/articlelanding/2020/mh/c9mh01844a#!divAbstract
